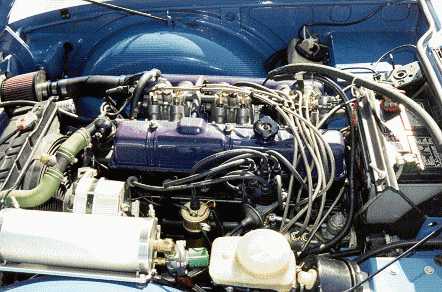

Left side of engine all of the injector lines are braided stainless. The Accusump is in lower left hand corner and accumulates oil under pressure and releases the oil when starting the car.
Top of engine

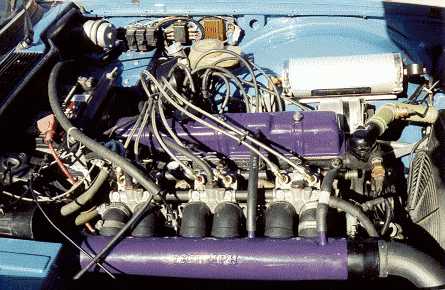

Right side of engine. Here you can see that the injector manifold is connected to the plenum via a short section of hose. This plenum only sees atmospheric pressure.

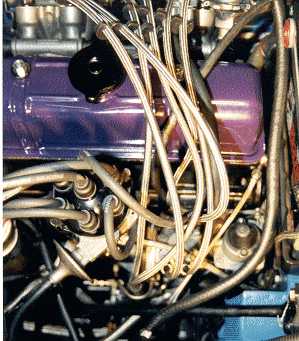

Lucas metering unit - and you thought that Lucus electrical was a headache!
Trunk mounted fuel pump, filter, and gauges. The shield in the photo is intended to prevent sharp objects from coming in contact with the gas lines that are running at 120 psig!
