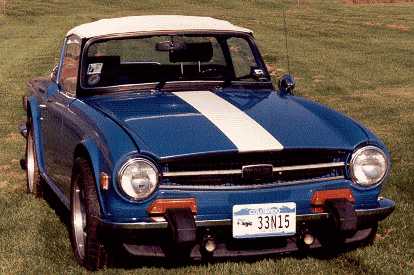

My TR6 is a modified 1974 model (serial number CF12681U)
Upgrades?
Some would call it butchery to modify a TR6, but not me!
With over 90,000 units built it's certainly not a Lotus or a Ferrari!
In my opinion a "1974 factory original" car handles like a pig and accelerates like the Goodyear blimp!
Engine
Modification of the engine compartment has been my primary focus on this car. Simply stated I'm trying to understand what
does and what does not make power in a TR6. Most of the modifications have been to the inlet side in an attempt to reduce inlet
restrictions and to increase fuel metering efficiency.
Stock engine configuration with the exception of the porting of the head.
Garrett T03 Turbo with a 0.63 A/R exhaust scroll and 60 series compressor.
Toyota 4 pot vented caliper front disk brakes. (link)
7/8 inch rear brake cylinders from a Morgan. (link)
Datsun Z finned aluminum brake drums. (70 240Z - 78 280Z, Datsun switched to rear discs in 79)
Electrical
All relays replaced with MODERN components.
Additional relays installed for main and high beams.
Ford Fiesta alternator upgrade with custom wiring harness. (link)
alarm system.
always on "fog" lights so others won't kill me.
Suspension/Drive train
1983 toyota celica 5 speed transmission with Herman van dan Akers conversion kit. (link)
Herman van den Acker rear tube shock conversion with KYB shocks.
3.45 rear end (std is 3.71).
16 X 7 inch Panasport wheels with 205-55/16 General UHP tires. (link)
Goodparts front and rear sway bar - best bang for the buck!. (link)
Goodpart Nylatron suspension bushings.
Corvair rear axles with 3 inch studs from David Wingett .
(link)
Aluminum front hubs with 3 inch studs from Southwick Machine & Design
aluminum steering blocks.
Body
silly racing stripe down the middle.
modified color - anything is better than French Blue (too gray for me)!
non standard surrey top.
front spoiler.
Subaru GL10 seats - I simply couldn't resist buying comfortable seats for $50 / pair. At the time miata seats were not
widely available. Currently I would investigate miata as the first choice. There is a wonderful explaination on installing
miata seats in a triumph at: miata seats
